  • stainless steel swing check valve

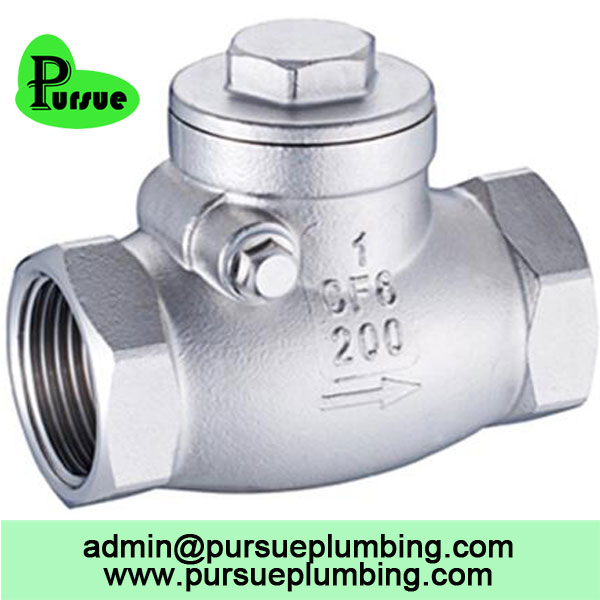

stainless steel swing check valve

stainless steel swing check valve

  • Material: stainless steel 304, 316, brass
  • Thread: NPT thread, BSPT thread
  • Connection: female thread, flange, welding
  • Port Size: 1/4''-4''
  • Product description: PURSUE supply stainless steel swing check valve, we are swing check valve china supplier, and swing check valve supplier.
  • INQUIRY

swing check valve supplier


swing check valve


Item No. Item name DN size Inch size
PS08090 Swing check valve DN15 1/2"
PS08091 Swing check valve DN20 3/4"
PS08092 Swing check valve DN25 1"
PS08093 Swing check valve DN32 1-1/4"
PS08094 Swing check valve DN40 1-1/2"
PS08095 Swing check valve DN50 2"


Technical data:

** Size: 1/2"~2"

** Material: SS316,SS304

** Application: water, oil, gas

** Thread: NPT,BSPT,BSP,DIN,MPT

** Various standard available



swing check valve supplier




What is a ball valve?

In this article, we will introduce the design and operation of the ball valve.

Ball valves are one of the most popular valves on the market, and all ball valves operate in the same way: the ball opens and closes, allowing flow through the valve.


Seal

One of the most important factors in designing a ball valve is dimensional control of all metal parts, surface finish and tolerances between each other. The ball must be perfectly round and preset to fit soft Teflon materials, or harder seats such as reinforced PTFE, peep or metal.

The secret of any seal design is local deformation (ie the yield of the seat produced at the point of contact) and filling the gap between the metal ball and the soft seat. Without such local yielding, bubble or vacuum properties cannot be obtained.
